BRAN+LUEBBE PUMP

Bran+Luebbe, a SPX FLOW brand, is a recognised world leader in the manufacture of precision dosing and metering pumps and analyzers. Known for the versatility of build options, Bran+Luebbe provides tailor-made quality solutions for customers in the oil and gas, petrochemical, chemical, and food processing industries.

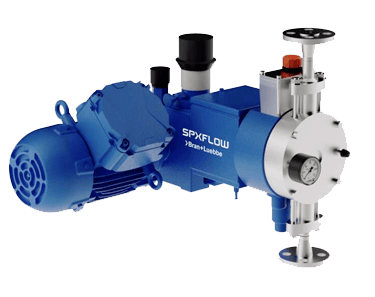

NOVADOS Express Metering Pump

NOVADOS Express H1 hydraulically actuated double diaphragm and plunger metering pumps cover flow rates of 2 L/H to approx. 300 L/H, with pressures up to 100 bar. They are suitable for most liquid dosing applications: from harmless to highly toxic and non-corrosive to extremely corrosive. They can also handle consistencies ranging from pure liquids free from particles to slurries with a solids content of up to 5wt%.

Materials of construction of liquid-wetted parts

  • Housings of stainless steel 316 low carbon type
  • Diaphragms of PTFE
  • Plungers of stainless steel or ceramic

Pump gear design

  • Worm gear with different reduction ratios
  • Splash lubrication
  • Stroke length adjustment via eccentric (Z-shape) crankshft

NOVADOS H3 Metering Pump

The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters.

Materials of construction of liquid-wetted parts

  • Housings of stainless steel 1.4571 or 1.4462 or plastic PVC or PP
  • Diaphragms of PTFE or stainless steel 1.4310
  • Plungers of stainless steel or ceramic
  • Options: materials such as Super Duplex, Hastelloy, Titanium and other materials


Pump gear design

  • Worm gear with different reduction ratios
  • Splash lubrication
  • Stroke length adjustment via eccentric (Z-shape) crankshaft

NOVADOS H5 Metering Pump

The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters.

Materials of construction of liquid-wetted parts

  • Housings of stainless steel 1.4571 or 1.4462
  • Diaphragms of PTFE or stainless steel 1.4310
  • Plungers of stainless steel or ceramic
  • Options: materials such as Super Duplex, Hastelloy, Titanium and other materials

Pump gear design

  • Worm gear with different reduction ratios
  • Splash lubrication
  • Stroke length adjustment via eccentric (Z-shape) crankshaft

NOVADOS H6 Metering Pump

The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters.

Materials of construction of liquid-wetted parts

  • Housings of St. Steel 1.4571 or 1.4462
  • Diaphragms of PTFE or stainless steel 1.4310
  • Plungers of stainless steel or ceramic
  • Options: materials such as Super Duplex, Hastelloy, Titanium and other materials

Pump gear design

  • Worm gear with different reduction ratios
  • Splash lubrication
  • Stroke length adjustment via eccentric (Z-shape) crankshaft

ProCam Hygienic Metering Pump

Diaphragm pump which covers requirements in hygienic and sterile applications.

At a glance:

  • CIP (cleaningin-place)
  • Covers requirements in hygienic and sterile applications
  • Specifically designed for applications in the pharmaceutical industry, biotechnology, cosmetics, personal care, food and beverage industry
  • Flexible multi-pump head design

Facts:

  • Metering pump with PTFE double diaphragm (FDA approved) and diaphragm condition monitoring by pressure switch
  • Hygienic valve design
  • Little residence time in the product chamber of the pump head
  • Double diaphragm and valve gaskets are made of PTFE (FDA)
  • Coating according to FDA requirements

ProCam Hygienic Metering Pump

Standardization means not only low investment, but as most of the components are identical and interchangeable, spares can be minimized leading to low storage cost and high availability.

ProCam Smart is an uncompromised, standard, economic, general purpose metering pump with stainless steel liquid end, suitable for handling many liquids, including hazardous fluids.

Advantages:

  • Hermetically sealed pump design
  • Diaphragm head with mechanically operated PTFE double-diaphragm
  • Diaphragm status control by hose nipple

ProCam Hygienic Metering Pump

We provide unparalleled global expertise in diverse markets such as Oil & Gas, Petrochemical, Chemical Processing, Food & Beverage, Toiletries & Detergents, Pharmaceutical and Water Treatment. The individual demands of these industries are well understood by our engineers by offering precise application and technical solutions.

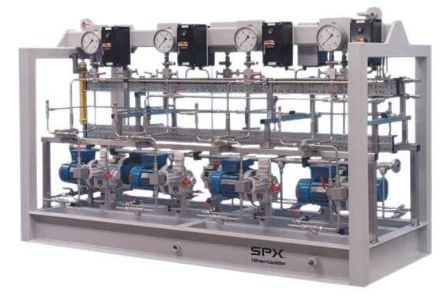

Custom Design

Once process parameters are established during an initial review meeting our engineering team will develop and design a proposed solution that meets all requirements allowing for any potential problem areas such as NPSH. Where necessary, control systems can be included to cover Batch, Flow or Proportional Control into a main line stream including PLC that can link to SCADA for recipe download, alarms and reporting as required to suit the process.

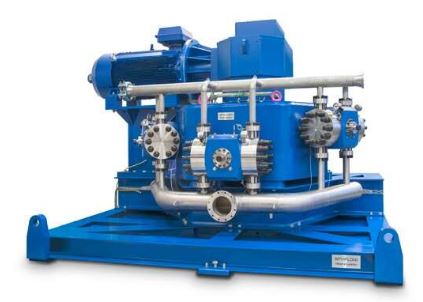

NOVAPLEX Vector Process Diaphragm Pumps

The NOVAPLEX Vector process diaphragm pump combines the reliability of the Bran+Luebbe diaphragm technology with a compact unique gearbox design. This allows for the use of a process diaphragm pump for applications where a small foot print is required. An interface for the NOVALINK CSM on-line diagnosis system is integrated.

Benefits

Reasons to consider the Vector Process Pump

  • Small foot print due to compact design
  • Low noise due to utilization of 4- resp. 6-poles motors
  • Less weight
  • Less maintenance effort

NOVADOS B Metering Pump

The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters.

Materials of construction of liquid-wetted parts:

  • Housings of St. Steel 1.4571 or 1.4462
  • Diaphragms of PTFE or stainless steel 1.4310
  • Plungers of stainless steel or ceramic
  • Options: materials such as Super Duplex, Hastelloy, Titanium and other materials

ProCam Plunger Metering Pumps

Economical and reliable, the robust and compact design of the ProCam plunger pump allows high operational security.

At a glance:

  • Economic metering of non-hazardous fluids
  • Operating pressure up to 80 bar
  • Flow rates from 0.16 to approx. 60 l/h
  • Robust gear technology with proven lost motion design for continuous
    operation at max. flow / pressure conditions
  • Linear stroke adjustment with manual or electric options
  • High operational security

ProCam Diaphragm Metering Pump

Our classic series of mechanically actuated double diaphragm pumps for low to medium range applications, brings the advantages and security of the double diaphragm concept to a wide variety of applications at an economical price.

At a glance:

  • Hermetically sealed pump head with mechanically operated PTFE double diaphragm allowing
    – safe metering of hazardous liquids
    – contamination free operation (important in potable water production)
  • Allows economic operation without loss in operating safety and reliability
  • 2 years warranty of PTFE double diaphragm
  • Diaphragm condition monitoring
  • Outstanding corrosion resistance due to high quality PTFE double diaphragm

NOVAPLEX Integral Process Diaphragm Pumps

NOVAPLEX Integral pumps are powerful process diaphragm pumps for a variety of applications. They are best suited for critical high pressure installations where the capabilities of traditional metering pumps are exceeded.

  • Double diaphragm pumpheads with
    • positive diaphragm position control
    • built-in pressure relief valve
    • diaphragm failure indication
  • Crank gears with
    • integrated lubrication system
    • anti-friction bearings
  • Modular concept
  • Integrated gear reducer
  • Minimized footprint
  • Compact design

CEREX P Metering Pump

For a quick and affordable flow control solution that delivers on quality and reliability, the Bran+Luebbe CEREX P metering pump is an ideal choice. Its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point. In addition, the CEREX P metering pump is constructed from standard, proven components held in stock – minimizing build time without compromising on quality.

• API 675 compliance
• Hydraulically actuated plastic double PTFE diaphragm
• Diaphragm condition monitoring with pressure gauge
• Double ball check valves
• Connections: NPT/tube fitting (metallic) or union end (plastic)
• Liquid-wetted material available as 316L type or plastic
• Manual linear stroke adjustment from 0 to 100%
• Motor suiting safe area
• Standard paint system

CEREX K Metering Pump

For a quick and affordable flow control solution that delivers on quality and reliability, the Bran+Luebbe CEREX K metering pump is an ideal choice. Its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point. In addition, the CEREX K metering pump is constructed from standard, proven components held in stock – minimizing build time without compromising on quality.

• API 675 compliance
• Hydraulically actuated double PTFE diaphragm
• Diaphragm condition monitoring with pressure gauge
• Double ball or spring loaded cone type check valves (depending on pump size)
• Connections: NPT (metallic) or union end (plastic)
• Liquid-wetted material available as 316L type or plastic
• Manual linear stroke adjustment from 0 to 100%
• Motor suiting safe area
• Standard paint system

CEREX K Metering Pump

For a quick and affordable flow control solution that delivers on quality and reliability, the Bran+Luebbe CEREX D metering pump is an ideal choice. Its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point. In addition, the CEREX D metering pump is constructed from standard, proven components held in stock – minimizing build time without compromising on quality.

• API 675 compliance
• Hydraulically actuated double PTFE diaphragm
• Diaphragm condition monitoring with pressure gauge
• Check valves double ball or cone depending on pump size
• Connections: NPT (metallic) or flange (plastic)
• Liquid-wetted material available as 316L type or plastic
• Manual linear stroke adjustment from 0 to 100%
• Motor suiting safe area
• Standard paint system
